LM-DA01 |
|

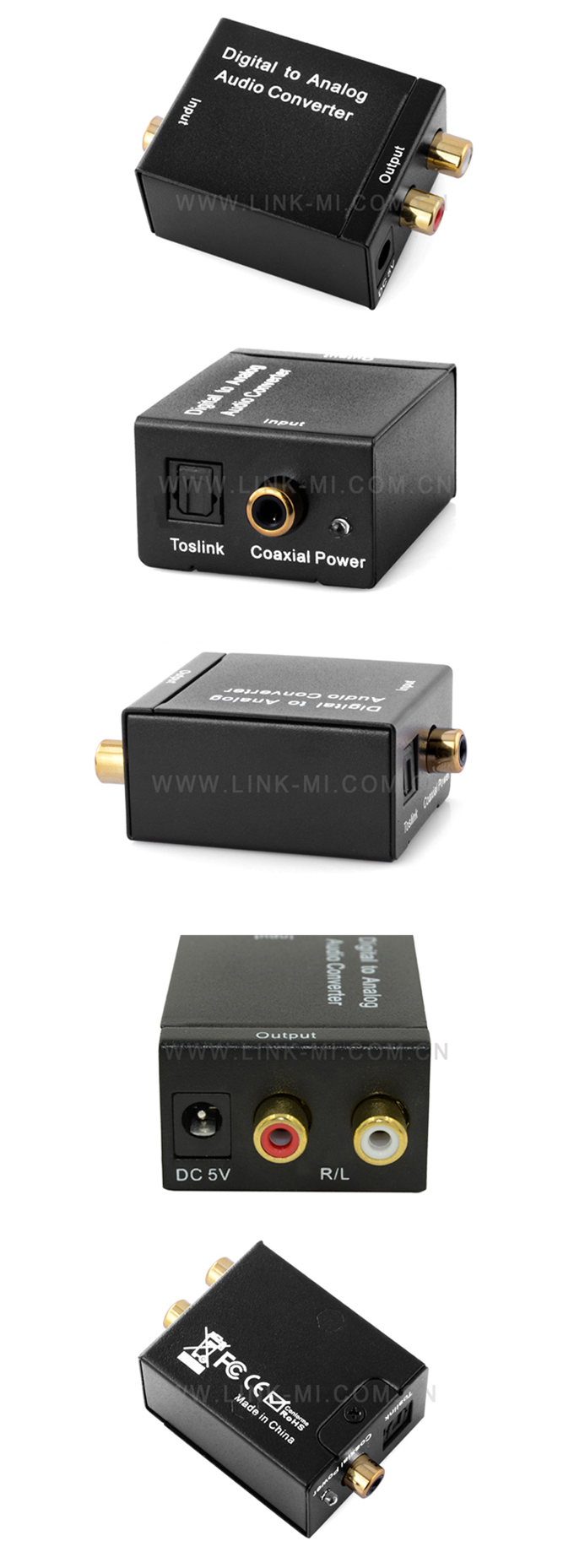

| LINK-MI LM-DA01 Digital To Analog Audio Converter |
| |
Introduction:

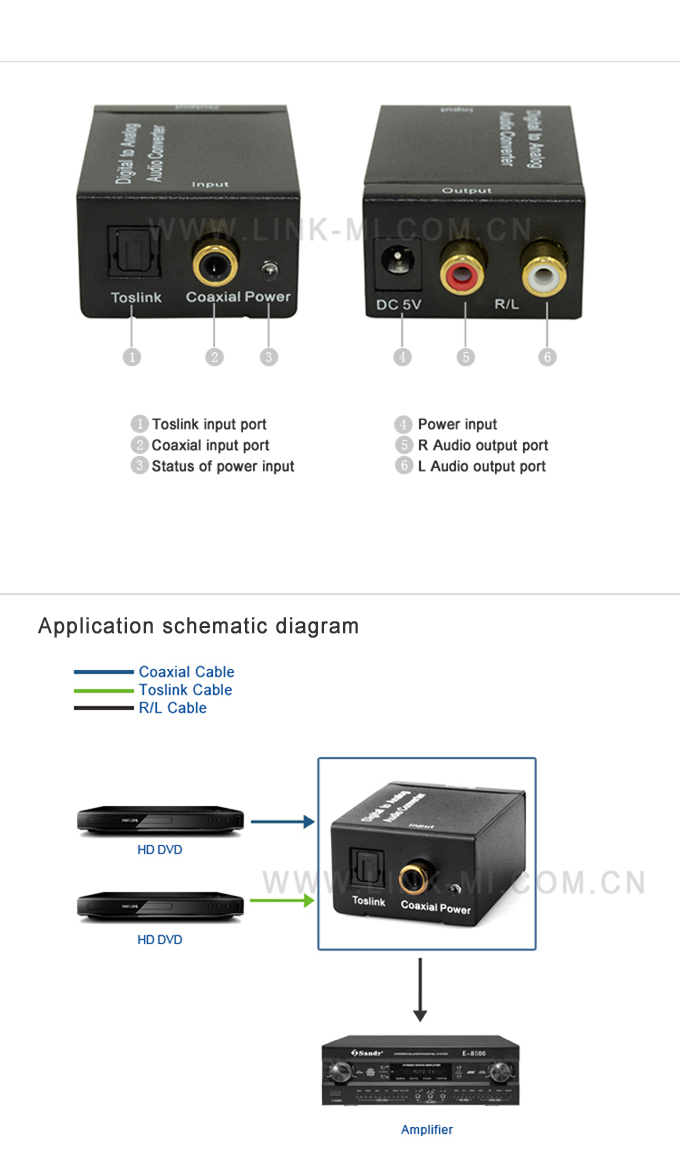

1. Converts Coaxial or Toslink digital audio signals to analog L/R audio2. Supports sampling rate at 32, 44.1, 48 and 96 KHz.3. 24-bit S/PDIF incoming bit stream on left and right channels4. Provides electromagnetic-noise-free transmission.5. Easy to install and simple to operate. |
|
|
| |
|
|
|
Specification
| Product Type |
Digital To Analog Audio Converter |
| Model No. |
LM-DA01 |
| Input Audio Signal |
Coaxial or Toslink digital audio |
| Output Audio Signal |
L/R audio |
| Input audio connector |
Toslink,1XRCA(Coaxial) |
| Output audio connector |
2XRCA(R/L) |
| Sampling rate |
32, 44.1, 48 and 96 KHz |
| Operating Temperature |
0 °C to +70°C |
| Operating Humidity |
10% to 85 % RH (no condensation) |
| Storage Temperature |
-10°C to +80°C |
| Storage Humidity |
5% to 90 % RH (no condensation) |
| Size ( L*W*H ) |
51*41*26mm |
| Net Weight |
78g |
| Power Supply |
DC 5V 1A |
| Power Consumption |
0.5 watts ( Max. ) |
Packing Contents
1. Main Unit. Digital to Analog Audio Converter
2. 1pcs DC 5V 1A Power Adapter
3. 1pcs User Manual |
 |
|
|
|
|
